    Large Output Waste Oil Steel Drum Crusher Box Press Compactor Machine 25 Ton Press Force High Stable Performance

    Ask Lasest Price
    Brand Name : WANSHIDA
    Model Number : Y82-25
    Certification : CE and ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Large Output Waste Oil Steel Drum Crusher Box Press Compactor Machine 25 Ton Press Force High Stable Performance

    Waste Drum Crusher Compactor Press Machine 200L Steel Drums


    We are China drum crusher manufacturer-Wanshida Hydraulic Machinery. We have more than 20 years experience in researching and developing metal baler presses, metal cutting machine, etc.


    1. Products:

    The Y82-25 Drum Crusher is a compact electro hydraulically operated 208L barrel press. And the compressed height is Min. 60mm. With its 30 Tons pressing force, this machine is suitable for both light steel drums, or rolling hoop barrels, any residual fluids discharge during compaction are collected in a 30-liter collection tank, which can be drained easily through an integral tap.

    Y82-25 Used Drum Crusher is used to compress 200L steel drums.
    And the compressed height is Min. 60mm.


    2. The technical parameters:

    SN.Name and Content of ParameterRemark
    1Main Hydraulic CYLDTypeYG125/80-1000
    Max.Push force250 kN25 ton
    Stroke1000 mm
    2Compress box size(L × W × H)790 × 790 × 1060 mm
    3Size of baled block(H)Min. 60 mm
    4Hydraulic system pressure21 MPa
    5ElectromotorTypeY 160M -4
    Power11 kW
    Rated speed1460 rpm
    6Oil pumpType40YCY14-1B
    Nominal discharge40 ml/r
    Nominal pressure31.5 MPa
    7Overall size(L × W × H)1150 × 1500 × 2950mm
    8Weight1800kg

    3. Quality: This machine apply to ISO9001: 2000 standard.


    4. Service:
    1) One year guarantee and lifelong maintenance;
    2) Any problem, you can call us directly.

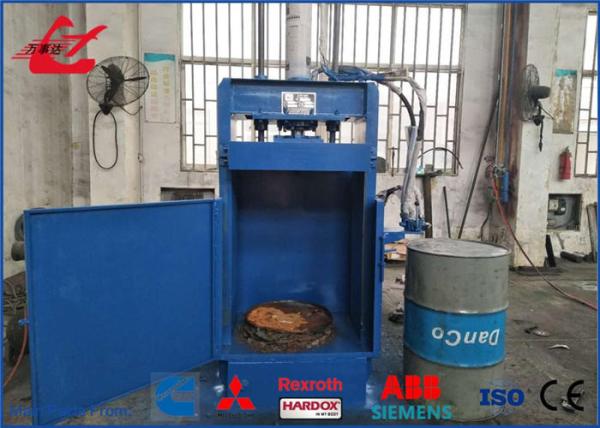

    5. Photos:

    Large Output Waste Oil Steel Drum Crusher Box Press Compactor Machine 25 Ton Press Force High Stable PerformanceLarge Output Waste Oil Steel Drum Crusher Box Press Compactor Machine 25 Ton Press Force High Stable Performance


    Gloden supplier for world famous brand:

    Aluminum Cans Metal Baler
